Simple animation to explain complex principles


1, aircraft radial engine

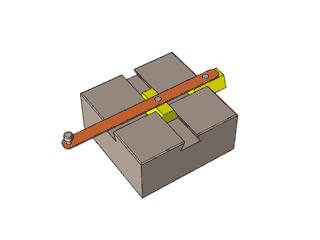

2, oval Regulation

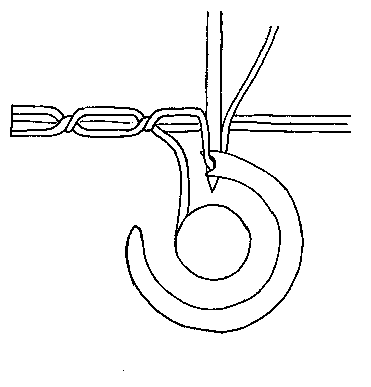

3, sewing machines

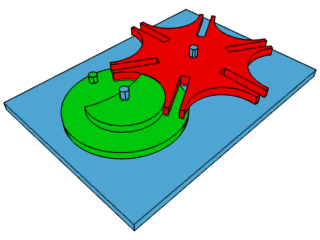

4, Malta Cross movement - second hand movement used to control the clock

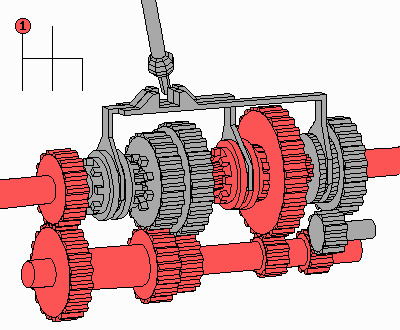

5, auto change file mechanism



6, auto constant velocity universal joint

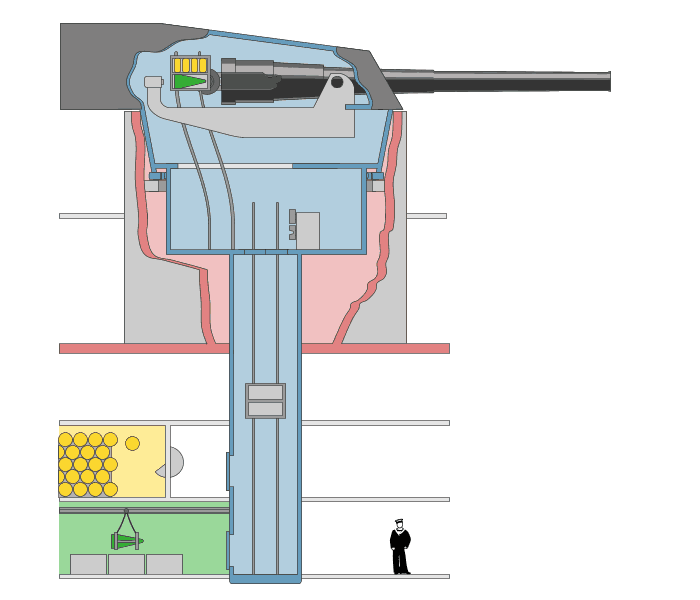

7, gun ammunition loading system

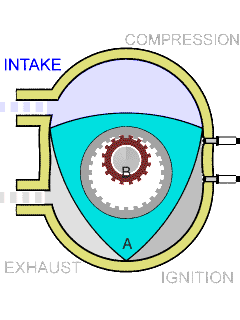

8 rotary engine - an internal combustion engine, the heat rather than the piston movement into rotary movement





# Via World Of Technology. HowStuffWorks see from the attached three car engine diagram:

1, inline engine - it's cylinders lined up side by side



2, V-type engine - cylinder arranged at an angle of two plane

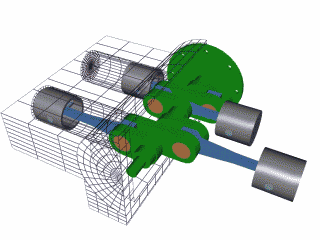

3, boxer engine - cylinder engine arranged in two planes relative
By Geethalakshmi, On - 2010-09-02
